Home page »Products »Laser Welders »FANTECH LWG 4.0 AIR
LASER
WELDER

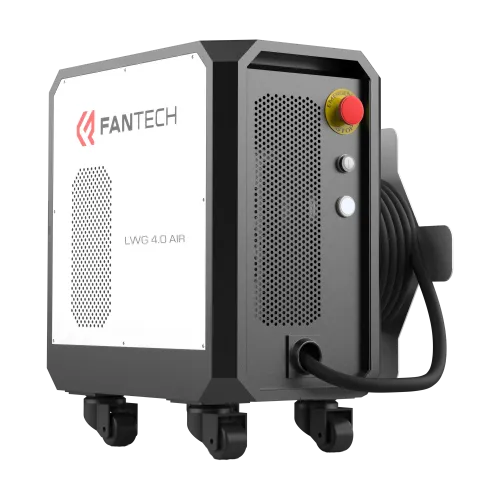

FANTECH LWG 4.0 AIR

Laser Welding Advantages
FANTECH Europe
FANTECH LWG 4.0 AIR CE certifikace
EN localization

Control panel completely in English

Try the device in action

Showroom with the possibility of life demonstration

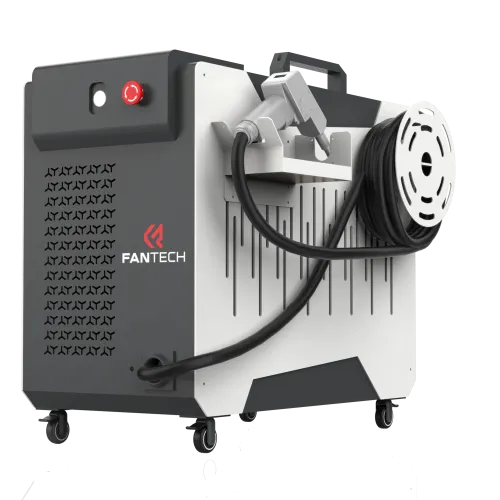

Handheld laser welder with 1500 W power.

Mobile laser welder equipment with compact dimensions, ideal for frequent changes of workstations.

  • MAX Photonic continuous laser source
  • 3 integrated functions in 1 machine (welding, cutting, remote cleaning, weld cleaning)
  • Welding speed 0 - 300 cm/min
  • Weight only 67 kg
  • Head with indication for changing the protective lens
  • Beam accidental activation prevention
  • Connectivity with laser workstation

Complies with all safety requirements of the standard EN 60825: Laser equipment safety.

Detailed Description

The handheld laser welder combines compact size and mobility, making it ideal for frequent workstation changes. Equipped with a continuous MAX Photonic laser source, it offers three functions in one device: welding, cutting and remote cleaning.
With a welding speed of up to 300 cm/min and a lightweight design of only 67kg, it ensures high productivity and work flexibility.

Components

FANTECH 3-in-1 Welding Head

FANTECH 3-in-1 Welding Head

The FANTECH welding head offers advanced technology for fast and accurate welding with weld width selection from 0 to 5 mm. Thanks to a patented system, it achieves up to 14 times faster speed ... compared to electric arc welding and up to 4 times better performance than competing laser systems. Its efficient water cooling system allows continuous 24/7 operation. The multifunctional head supports not only welding, but also rust and paint removal from steel and sheet metal cutting. An LED indicator on the side of the head alerts the operator to possible overheating – for example, due to a contaminated protective lens that reflects the beam back into the head.

Additional features and functions:

  • Two laser beam modes: spot and line
  • Adjustable laser beam width (0–5 mm)
  • Built-in sensors for monitoring protective lens and galvanometer motor
  • LED indicator for lens replacement
  • Dustproof construction
  • Safe operation via ergonomic trigger
  • Continuous or pulsed welding mode
  • Supports power sources from 1000 W to 3000 W
  • Compact dimensions: 233.6 × 174 mm, low weight: 0.75 kg
  • Easy to operate
FANTECH Wire Feeder

FANTECH Wire Feeder

The FANTECH wire feeder features a modern touchscreen display for easy setup and monitoring of all wire feeding parameters. This fully automatic feeder comes with an integrated software interface ... allowing work with filler wires from 0.8 to 1.6 mm in diameter. It offers two feeding modes – continuous and pulsed – and enables precise adjustment of key parameters such as feed speed, retraction speed, and correct wire positioning. The system is compatible with standard spools used in arc welding, including a special Teflon bowden for aluminium wire feeding.

Additional features and functions:

  • Touchscreen display for setting and displaying parameters
  • Two wire feeding modes: continuous and pulsed
  • Wire feeding parameters:
    • Feed speed: 15–600 cm/min
    • Forward/reverse movement to desired welding position
  • Supported wire diameters: 0.8; 1.0; 1.2; 1.6 mm
  • Supported materials: steel, stainless steel, aluminium, copper, bronze, and others
  • Bowdens and rollers for feeding both steel and aluminium wires (0.8 – 1.6 mm)
  • Fully automatic feeder compatible with standard welding spools

Accessories and Spare Parts

Accessories and spare parts for the FANTECH LWG 4.0 AIR welding device

Panoramaxx Hybrid CLT Welding Helmet

Helmet Panoramaxx

The laser welding helmet with integrated Crystal Lens technology can now be used not only for conventional arc welding, but also for handheld laser welding.

Learn more
Welding Helmet FANTECH

Welding Helmet

The FANTECH protective welding helmet is equipped with a self-darkening module that allows the darkness level to be adjusted according to the user’s eye sensitivity. For maximum protection during laser welding, a certified protective glass according to the EN 207 standard is placed behind the module. The helmet is included as an accessory with every FANTECH welding machine, but it is also available for a separate purchase.

Learn more
Welding Gloves FANTECH

Welding Gloves

FANTECH welding gloves are designed to provide maximum protection and comfort during welding. They are made from high-quality materials that resist high temperatures and protect against sparks and spatter. The ergonomic design ensures comfortable handling of tools, while the high durability guarantees a long service life even during demanding welding tasks.

Learn more
Consumables FANTECH

Consumables

With every FANTECH welder, you receive a free set of 10 protective lenses. Timely replacement of contaminated lenses extends the lifespan of the entire optical system in the welding head. The machine also comes with tips for different types of welds (fillet, corner, butt) and various wire diameters. Using the appropriate tip ensures absolutely precise results.

Learn more
Spare Parts FANTECH

Spare Parts

We offer a wide range of original spare parts, all of which are kept in stock at all times. Whether replacing worn-out parts or replenishing consumables, we ensure fast delivery and professional installation.

Learn more
