Helmet Panoramaxx

Laser Welding Advantages
FANTECH Europe

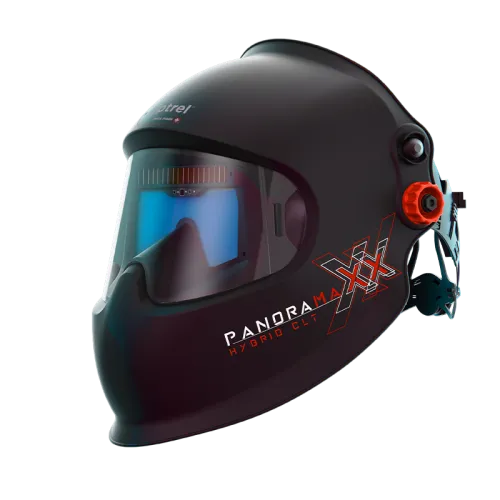

Panoramaxx Hybrid CLT Welding Helmet
adjustable sensitivity

Five sensors with “Super High” sensitivity

laser radiation

Hybrid system for laser and arc welding

The laser welding helmet Panoramaxx Hybrid CLT with integrated Crystal Lens technology can now be used not only for conventional arc welding, but also for handheld laser welding.

  • Integrated laser safety glasses
    Eyes perfectly protected by a patented inner frame.
  • Panoramaxx XXL field of view
    Up to several times wider view compared to standard helmets – no nose-area limitation.
  • Crystal Lens technology
    For better perception and crystal-clear vision.
  • Featherlight and well-balanced
    For maximum comfort and perfect ergonomics.
  • Light level 2.5
    For true-color and detailed view of the weld pool.
  • Shade level 4–12
    Wide range of protection levels for many applications.

Detailed Description

This new product line features the revolutionary Crystal Lens Technology. This means you can now use this special technology not only for conventional arc welding, but also for handheld laser welding. Anyone who has ever welded with CLT will hardly believe their eyes.
The color perception in the light state is very close to looking through clear window glass, while in the dark state you get a detailed, high-contrast view of the weld pool with unprecedented clarity.
With the Panoramaxx hybrid range, you can now unlock even more of your true potential.

Technical Data

Weight 0.685 kg
For lasers 1000 – 1100 nm
Laser eye protection classification EN 207: 1000-1100 D LB7 IR LB8 OS CE
Included in package Welding helmet, case, Micro USB cable, warranty card

Shade Levels

ShadeTronic inactive Shade level 2.5
Active, manual Shade levels 3–8
ShadeTronic mode 4–12

Power Supply: Solar cells, Li-polymer battery, charging via Micro-USB

Battery life span 300 to 500 charging cycles

Sensors – Five sensors with “Super High” sensitivity

Switch time from light to dark 0.090 ms at 20 °C
0.070 ms at 55 °C
Switch time from dark to light 0.1 s to 2.0 s (with FadeTronic function)

Suitable for

  • Laser welding (wavelength 1000 – 1100 nm)
  • Shielded metal arc welding (SMAW)
  • MIG/MAG (GMAW)
  • GMAW with high melting rate
  • Wire feed welding
  • TIG welding (GTAW)
  • Plasma arc welding
  • Plasma cutting
  • Gas welding
  • Grinding mode
