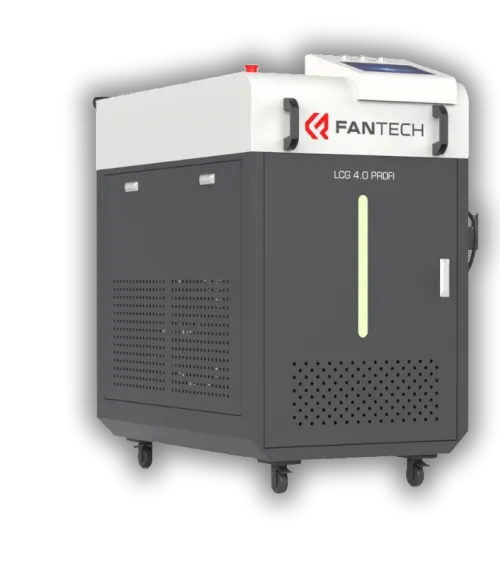

FANTECH LCG 4.0 PROFI CONTINUAL

Control panel completely in English

Showroom with the possibility of life demonstration

Handheld laser cleaner available in 1000 W, 1500 W, 2000 W, 3000 W.

This laser cleaner uses highly advanced Raycus laser source technology, which significantly accelerates and enhances the cleaning process.

Its innovative functions enable fast and precise cleaning of various surfaces.

Key features and functions:

Available power levels: 1000 W, 1500 W, 2000 W, 3000 W
Advanced Raycus technology for accelerated cleaning
Cleaning beam width up to 30 cm
No need for abrasives
Suitable for metallic materials
Ideal for rust and paint removal
Visually simple operating system for easy control
Monitoring functions and alarms for safe operation
Water cooling for stable performance
2-year warranty
Connectivity with laser workstation

Detailed Description

The laser cleaner uses advanced continuous fiber laser technology from Raycus, allowing fast and efficient cleaning of various surfaces. With a cleaning strip of up to 30 cm and no need for abrasive materials, it is ideal for removing rust and paint from both metallic and non-metallic materials.

Water cooling ensures stable performance, while real-time monitoring functions guarantee maximum safety and efficiency.

Technical Specification

Laser output power	1000 W	1500 W	2000 W	3000 W
Laser wavelength	1080 nm	1080 nm	1080 nm	1080 nm
Optical fiber length	10 m	10 m	10 m	20 m
Operating mode	Continuous	Continuous	Continuous	Continuous
Electrical voltage	1 phase 230 V	3 phase 400 V	3 phase 400 V	3 phase 400 V
Power consumption	5 kW	7 kW	9 kW	11 kW
Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Protection	25 A	20 A	25 A	29 A
Machine weight	215 kg	215 kg	215 kg	240 kg
Machine dimensions	1100 x 670 x 1020 mm	1100 x 670 x 1020 mm	1100 x 670 x 1020 mm	1190 x 670 x 1280 mm
Head weight	990 g	990 g	990 g	990 g
Cooling	Distilled water
Safety	Central laser activation + safety lock + protective equipment
Control	Touch screen and PLC fully in English

Components

Cleaning Head

The FANTECH laser cleaning head is designed for stable and safe operation with a power range of 1 to 3 kW. With a lightweight of just 1 kg, it is easy to handle and ergonomically adapted for efficient work. The gun is equipped with a patented safety rotary lock ... and safety trigger requiring a double press to activate the laser beam, ensuring maximum operator safety. The device is capable of cleaning surfaces with a beam width of 30 cm. The distance from the cleaning head to the material being cleaned is approximately 80 cm. The laser cleaning head is water-cooled, guaranteeing long-term stable operation. The shielding gas (nitrogen or compressed air free from impurities and moisture can be used) protects the optical system inside the cleaning head from damage.

Additional Features and Functions

Easier for long-term manual operation
Effectively prevents dust and other contaminants
Ensures stability of laser output

Raycus Laser Source

The Raycus laser source provides reliable and stable performance for cutting and cleaning applications. With advanced technology, it offers high energy efficiency, resulting in lower energy consumption and longer device lifespan. ... The laser is designed to protect the operator from unintended beam-related injuries. Before delivery to the customer, the equipment undergoes thorough testing to ensure its reliability and long-term operation. Show more
