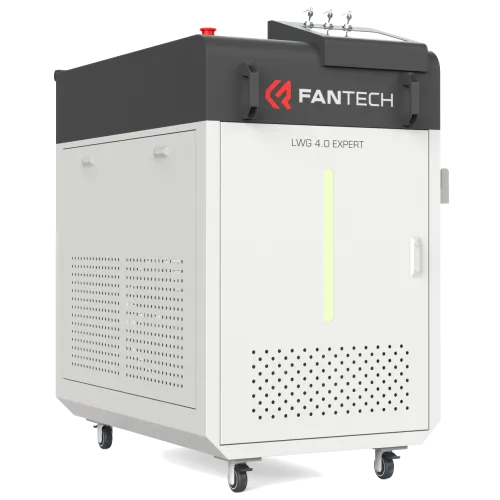

FANTECH LWG 4.0 EXPERT
Control panel completely in English
Showroom with the possibility of life demonstration
Handheld laser welder available power options: 1000W, 1500W, 2000W, 3000W.
Professional industrial welding equipment designed for demanding production conditions. Its water-cooled system allows continuous operation without the risk of overheating or loss of performance.
- Continuous RAYCUS laser source with wavelength 1080 (±5) nm
- Multiple functions in one machine: welding, cutting, remote cleaning
- Welding speed 0-120 nm/s
- Optimal performance for welding with thin materials up to 10 mm
- Welding head with protective lens replacement indicator
- Beam safety lock to prevent accidental activation
- Connectivity with laser workstations
Components
FANTECH 3-in-1 Welding Head
The FANTECH welding head offers advanced technology for fast and accurate welding with weld width selection from 0 to 5 mm. Thanks to a patented system, it achieves up to 14 times faster speed ... compared to electric arc welding and up to 4 times better performance than competing laser systems. Its efficient water cooling system allows continuous 24/7 operation. The multifunctional head supports not only welding, but also rust and paint removal from steel and sheet metal cutting. An LED indicator on the side of the head alerts the operator to possible overheating – for example, due to a contaminated protective lens that reflects the beam back into the head.Additional features and functions:
- Two laser beam modes: spot and line
- Adjustable laser beam width (0–5 mm)
- Built-in sensors for monitoring protective lens and galvanometer motor
- LED indicator for lens replacement
- Dustproof construction
- Safe operation via ergonomic trigger
- Continuous or pulsed welding mode
- Supports power sources from 1000 W to 3000 W
- Compact dimensions: 233.6 × 174 mm, low weight: 0.75 kg
- Easy to operate
FANTECH Wire Feeder
The FANTECH wire feeder features a modern touchscreen display for easy setup and monitoring of all wire feeding parameters. This fully automatic feeder comes with an integrated software interface ... allowing work with filler wires from 0.8 to 1.6 mm in diameter. It offers two feeding modes – continuous and pulsed – and enables precise adjustment of key parameters such as feed speed, retraction speed, and correct wire positioning. The system is compatible with standard spools used in arc welding, including a special Teflon bowden for aluminium wire feeding.Additional features and functions:
- Touchscreen display for setting and displaying parameters
- Two wire feeding modes: continuous and pulsed
- Wire feeding parameters:
- Feed speed: 15–600 cm/min
- Forward/reverse movement to desired welding position
- Supported wire diameters: 0.8; 1.0; 1.2; 1.6 mm
- Supported materials: steel, stainless steel, aluminium, copper, bronze, and others
- Bowdens and rollers for feeding both steel and aluminium wires (0.8 – 1.6 mm)
- Fully automatic feeder compatible with standard welding spools
Raycus Laser Source
The Raycus laser source uses advanced technology to enable welding and cutting of even highly reflective materials, such as aluminium, copper, or brass, without the risk of dangerous beam reflections. It ensures zero ... porosity and high weld quality. Thanks to its efficient power it achieves up to 120% efficiency compared to conventional laser sources. The fiber technology it uses brings low operating costs, high productivity and process stability, significantly reducing production costs. The Raycus laser is environmentally friendly, safe to operate and has a long service life of up to 100,000 operating hours.Additional features and advantages:
- Over 40% electrophotonic conversion efficiency
- Low power consumption
- Power variants: 1000W, 1500W, 2000W, 3000W
- High energy density and wide modulation frequency range
24-hour pre-delivery testing for stability and reliability.
Key benefits of Raycus fiber laser technology:
- Low operating and maintenance costs
- High productivity and process stability
- Welding of reflective materials (aluminium, copper, brass) and various steel types
- Laser source lifespan: up to 100,000 hours
- Environmentally friendly and operator-safe
High-Performance Laser Source Cooler
The high-performance cooler ensures continuous and stable operation of the laser system, even in demanding conditions, such as during summer heat. Thanks to efficient water cooling, ... the laser source and welding head are optimally protected from overheating, which increases the overall efficiency of the machine. The cooling unit is already filled with liquid and the user can easily refill it with distilled water or simply drain it through a valve. The cooler controls are user-friendly and adapted for comfortable use with a touchscreen interface that can be operated even with gloves on.Main Advantages of FANTECH Water Cooling System:
- Temperature Control Accuracy: ±0.5 °C
- Temperature Control Range: 5–35 °C
- Dual Cooling Circuit: For laser source and welding gun
- Multi-Level Protection:
- High/low temperature alarm
- Compressor delay protection
- Compressor overcurrent protection
- Water flow alarm
- Stable performance and long service life
- Digital control panel for easy operation
- Front fill and drain opening for distilled water
Accessories and Spare Parts
Accessories and spare parts for FANTECH LWG 4.0 EXPERT welding equipment
